Colocation-Site Heiligenstädter Lände 27c/Medienhaus

The Best-Connected Location for Your IT

We are taking over Drei Austria’s data center, expanding our data center infrastructure to a total of four locations in Vienna. The site at Heiligenstädter Lände 27c is being extensively modernized, technically upgraded, and sustainably enhanced—seamlessly integrated into the existing next layer network. Thanks to targeted investments, we offer our customers a stable, highly available, and future-proof data center hub in the north of Vienna. With direct connections to the fiber backbone of next layer and other network operators, as well as seamless integration with our existing data center sites and the major internet exchange points VIX1 (University of Vienna), VIX2 (Digital Realty), and VIX3 (NTT) at the Vienna Internet Exchange, this location ranks among the best-connected data centers in Austria.



Advantages

  • High-Performance Data Center Location Certified According to ISO 27001
  • Redundant cooling system, cold aisle containment concept according to ASHRAE (in implementation)
  • Redundant power supply (UPS, emergency generator), power billing based solely on actual consumption
  • Early fire detection, fire suppression system, fire alarm line connected to the central fire alarm system
  • Perimeter protection, 24/7 access, video surveillance and recording
  • Direct connection to the fiber backbone and to the Fleischmarkt site, VIX1 (University), VIX2 (Digital Realty), and VIX3 (NTT) of the Vienna Internet Exchange

Service Units

  • Data center area/cage (m2)
  • Full Cabinet (19 “, 47 height units, depth 120 cm)
  • Half Cabinet (19 “, 20 height units, depth 120 cm)
  • Quad Cabinet (19 “, 8 height units, depth 120 cm)

Electricity

  • Power Supply from 100% Renewable Energy, CO₂-Neutral
  • In cages 2 (formerly DC2B) and 3 (formerly DC2C), every power circuit is secured by UPS
  • In room DC2A, circuits are connected once to UPS and once to mains + emergency generator
  • N+1 redundant power circuits
  • Emergency power via diesel generator with fuel reserves
  • The power supply is designed as a dual feed with uninterrupted A and B power supply, including separate power distribution rails for A and B circuits
  • Handover of both power circuits into the cabinets

Climate Control

  • Optimized Air Circulation for "Green IT"
  • Redundant air recirculation coolers and cooling production (N+1)
  • All equipment relevant to colocation operations, such as cooling units, secured power supply, fire detection systems, etc., is monitored 24/7
  • Cold aisle air temperature is regulated according to ASHRAE 2021 Class A1 between 15°C and 32°C, and relative humidity between 8% and 80%
  • Temperature and humidity sensors are installed at key locations throughout the data center

Network

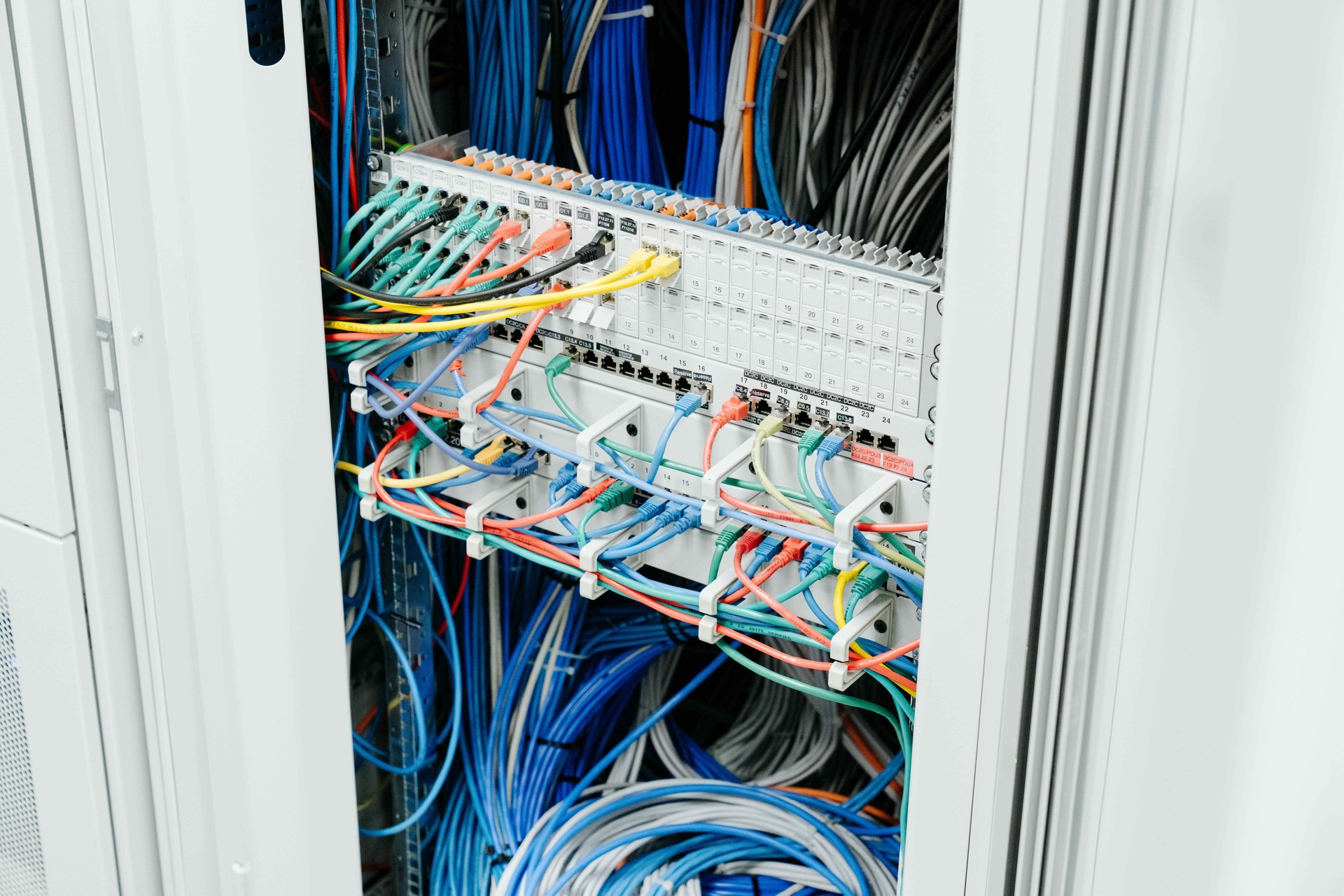

  • All Cabinets are pre-wired with redundant Cat5e / Cat6a and prepared for fiber optics
  • Redundant connection of the data center to diverse fiber routes
  • Direct connection to next layer’s 500 km metro network and Austrian backbone
  • Fiber connections directly linking to 20 data centers and over 50 office buildings in Vienna
  • Internet bandwidths ranging from 100 Mbit/s up to multiple 100/400/800 Gbit/s are available

Security

  • Certified according to the internationally recognized DIN ISO/IEC 27001 Standard
  • 24/7 autonomous biometric access down to the cabinet level; each cabinet can be locked individually
  • Intrusion detection system with perimeter monitoring, security service alert and response
  • Video surveillance with recording
  • Early fire detection system
  • Gas-based fire suppression system
  • Leak detection warning system
  • Continuous 24/7 monitoring of the entire infrastructure via our next layer Monitoring System (NLM)

Business Service Levels

  • Tier II+ Data Center
  • Continuous operation provided 24/7

Location

  • Located in the North of Vienna, approx. 5 km from the City Center and 22 km from Vienna International Airport
  • Ground-level delivery access, short-term storage of equipment possible, freight elevator available
  • Parking available (subject to availability)
  • Staging & waiting area for customers, free WiFi from next layer available in all cages and the waiting area

Certification

  • DIN EN ISO 27001 based on IT Baseline Protection* Information Security Management System

Have we sparked your interest?

If you have any specific questions or would like a quote based on your unique requirements,  please do not hesitate to reach out to us. You are welcome to send us an e-mail to sales(at)nextlayer.at or call us at +43 5 1764-622. We look forward to hearing from you!
